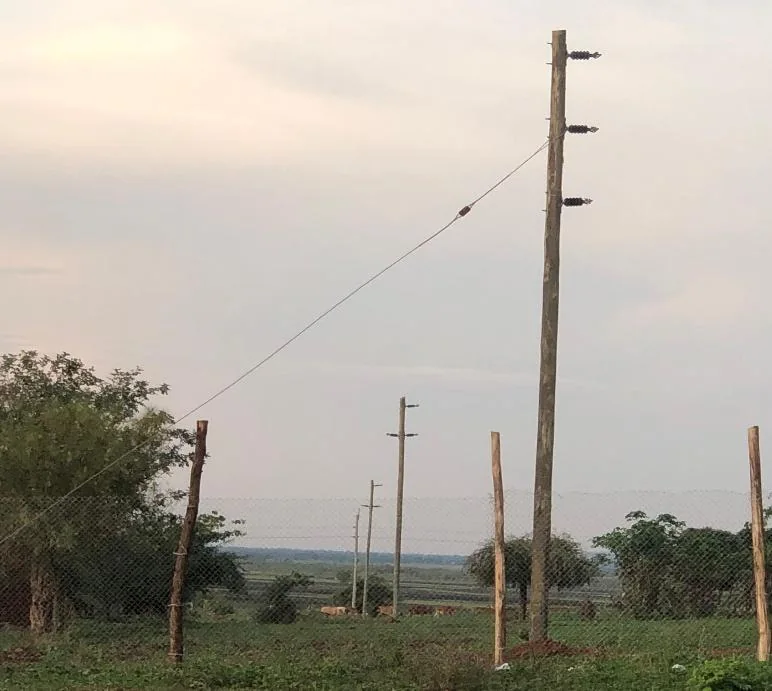

Route & Structures
Set out the route and installed treated wooden poles across the 800m extension.
Mawemiru 33kV extension and 800kVA substation
A dedicated supply system built to support mining operations in Shinyanga.
Project Overview
Dedicated industrial power delivered on a compact programme
KELM constructed an 800m, 33kV overhead distribution line on treated wooden poles and established an 800kVA 33/0.4kV transformer substation for Zheng Ze Tian Chen Mining Company Limited.
The system was designed to provide a stable and efficient electrical source for mining operations, bringing line construction, switching, protection and transformer installation into one delivery scope.
- Client
- Zheng Ze Tian Chen Mining Company Limited
- Programme
- November 2024 · December 2024
- Location
- Mawemiru, Shinyanga
- Line
- 800m of 33kV overhead line
- Substation
- 800kVA, 33/0.4kV transformer
What KELM Did
Built the network connection and substation

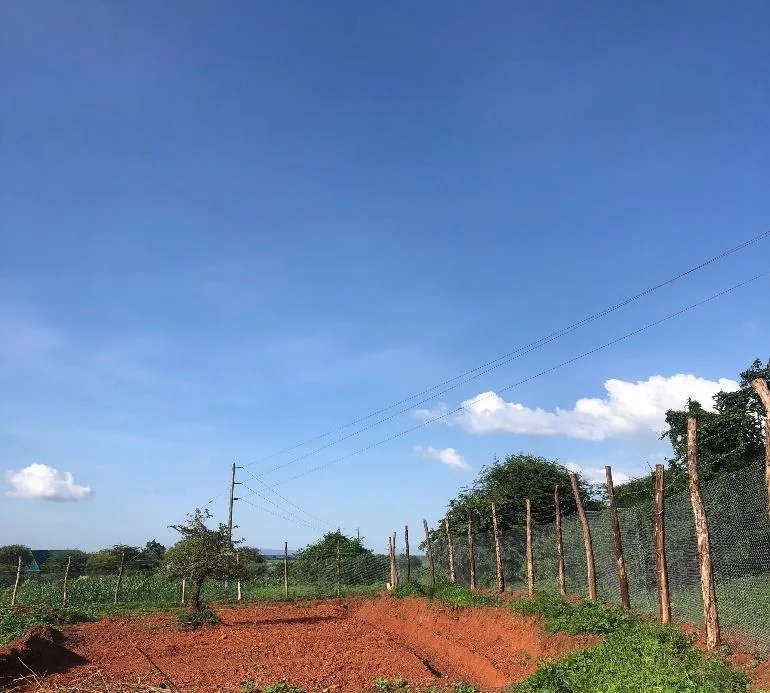

Conductor Installation
Completed ACSR stringing, tensioning, sagging and line terminations.

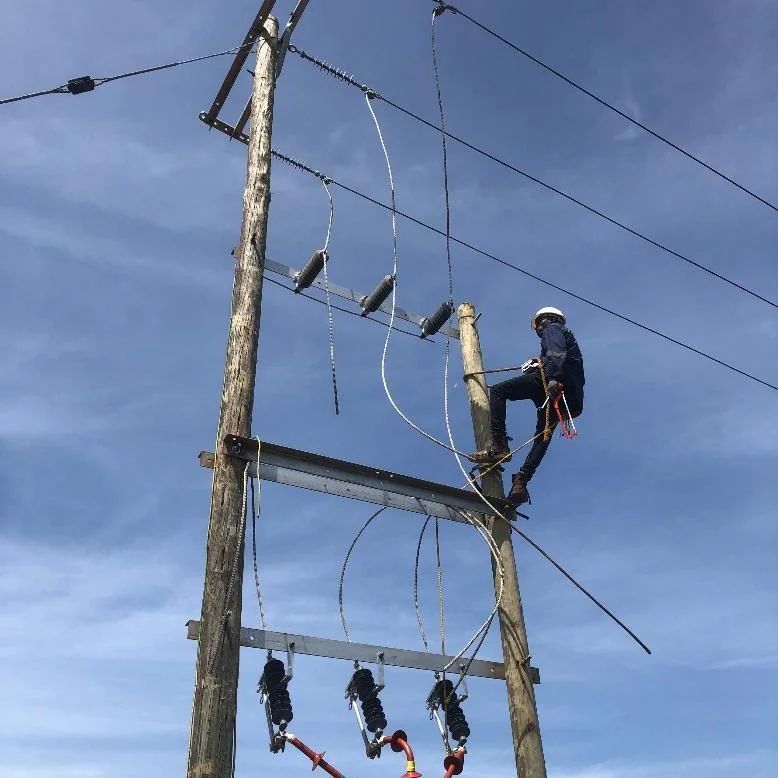

Switchgear & Protection
Installed drop-out fuses, surge protection and switching equipment.
800kVA Substation
Installed the transformer, earthing system, lightning protection and distribution interfaces.
Project Photos
Line, switchgear and transformer works
