MV and LV switchgear, protection and metering

KELM installs, tests and commissions switchgear and protection systems up to 36kV.

Switchgear & Protection

Switchgear installation and protection testing

KELM installs and commissions MV and LV switchgear, metering and protection. Our work at Butimba included a ring main unit and protection equipment for the treatment-plant supply; our mining substation projects include switching and transformer protection.

We check equipment ratings against the system voltage, current and fault level, then complete cable connections, control wiring and protection checks. Testing covers switching operation, interlocks, indications and relay functions. We also replace or extend switchboards and investigate protection and control faults.

Up to 36kVMV switchgear supply and installation capability

RMU & protectionIntegrated into the Butimba treatment-plant supply

Install · Test · CommissionInstallation, protection checks and commissioning

Installation & Testing

Switchgear installation on site

Installation, cable terminations, protection checks and functional testing completed by KELM on site.

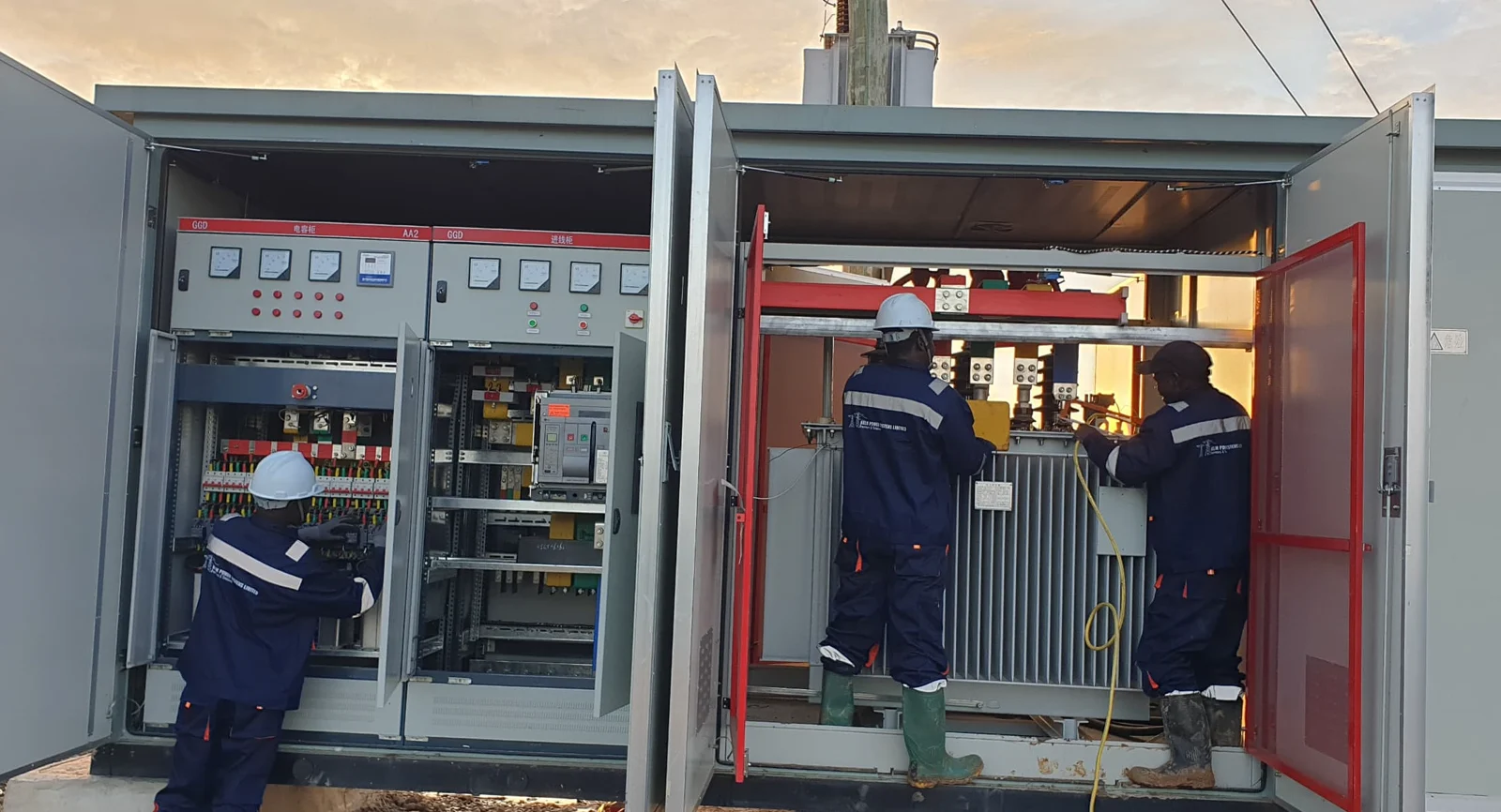

Open switchgear lineup during KELM installation — Switchgear installation

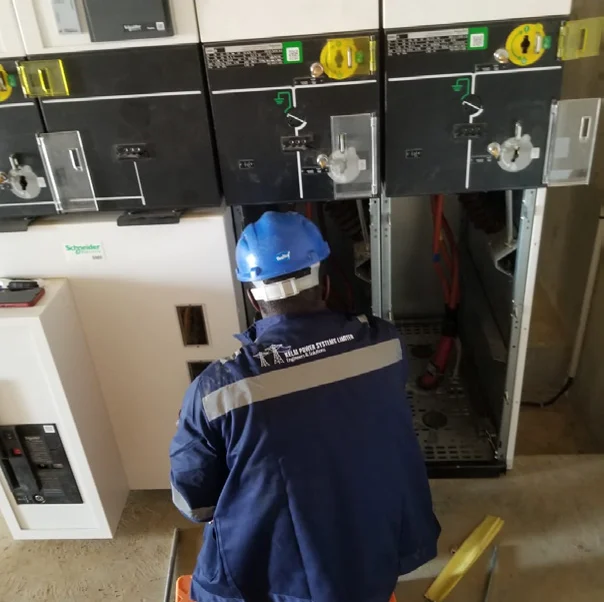

KELM technician inspecting MV switchgear — Equipment inspection

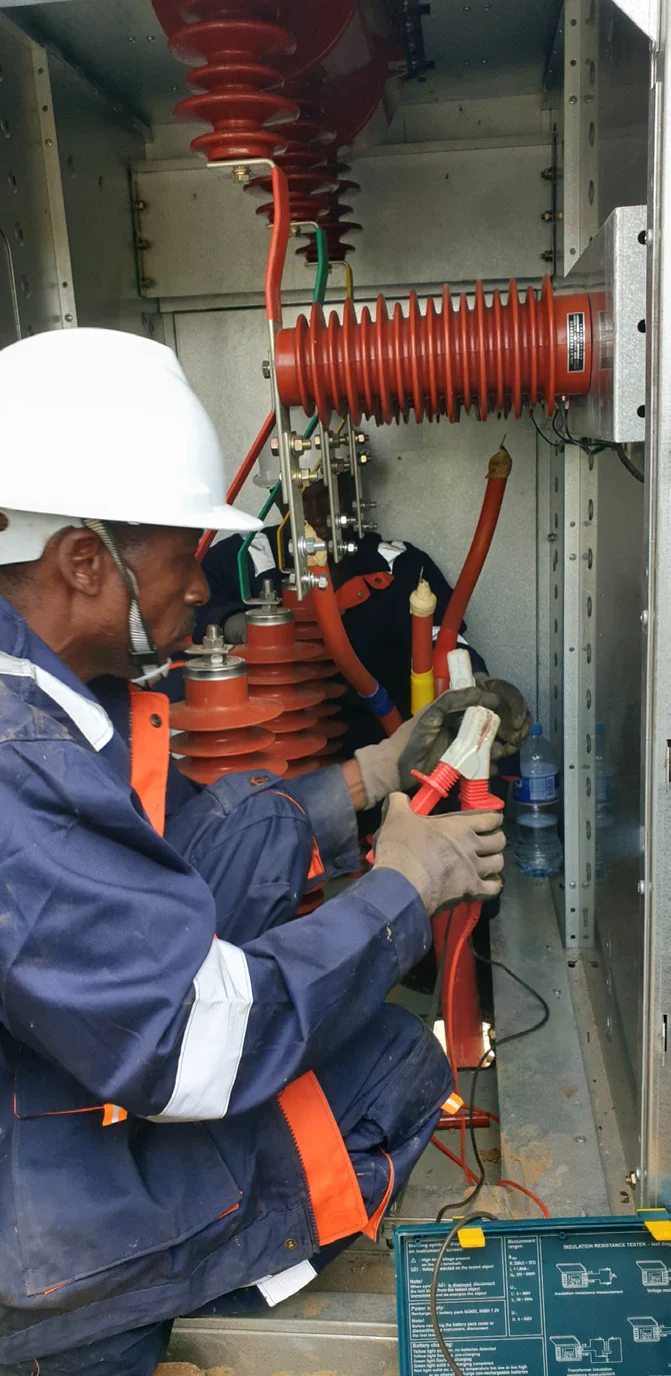

KELM technicians working on MV protection equipment — MV protection checks

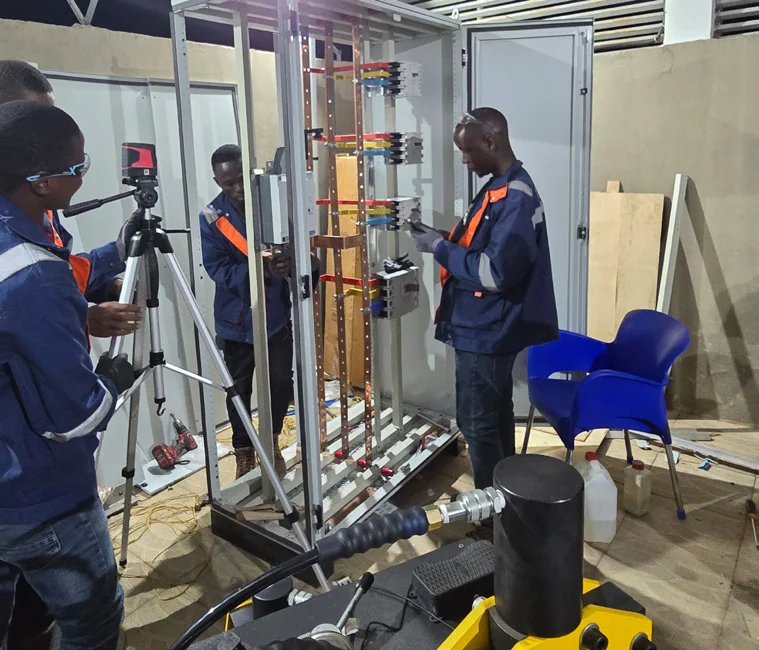

KELM team testing an electrical panel — Panel wiring and testing

Scope Of Work

Installation, protection and testing

developer_board

Installation

Switchgear positioning, bus and cable connections, control wiring and earthing.

shield

Protection & Metering

Relay functions, settings checks, meters, indications and interlocks.

rule

Testing

Mechanical checks, electrical tests, functional tests and commissioning records.

Up To 36kV

Switchgear for substations and industrial distribution systems.

Need switchgear installed, tested or replaced?

Send KELM the system ratings and drawings available.
